FIRE DOORS

It is becoming a requirement that both public and commercial buildings have sufficient fire-resistant doors in place to reduce the spread of fire and smoke, particularly in high-rise buildings. Pensher Skytech’s fire doors are suitable for areas at high risk and volumes of fire, as they are fire rated up to 2 hours integrity and insulation to EN1634. The door system ensures that any fire risk can be isolated, enabling workers enough time to safely exit, as well as minimising risk to assets and property.

Fire Door Testing | Pensher Skytech

PERFORMANCE

The performance for fire resistance is the time that a unit can resist fire, remaining free of cracks, holes, or openings, and maintaining its integrity or insulation or both.

The period of time during which a product must resist fire is typically determined in accordance with fire management plans and escape routes.

Pensher Skytech Fire Doors are designed to incorporate other performance requirements including blast, acoustics, and bullet. The doors are also inherently airtight and gas tight and watertight.

MANUFACTURING

When testing fire resistance, the door must resist a constant heat in excess of a certain time, often 30, 60 or 120 minutes.

Pensher Skytech’s fire windows can provide up to 120 minutes of fire resistance for integrity and insulation and also 2 hours resistance for integrity only. This is resistance on a higher scale, making it suitable for high-risk areas and environments where there could possibly be large volumes of flames.

For higher security units we conduct fire testing to meet our client’s specifications.

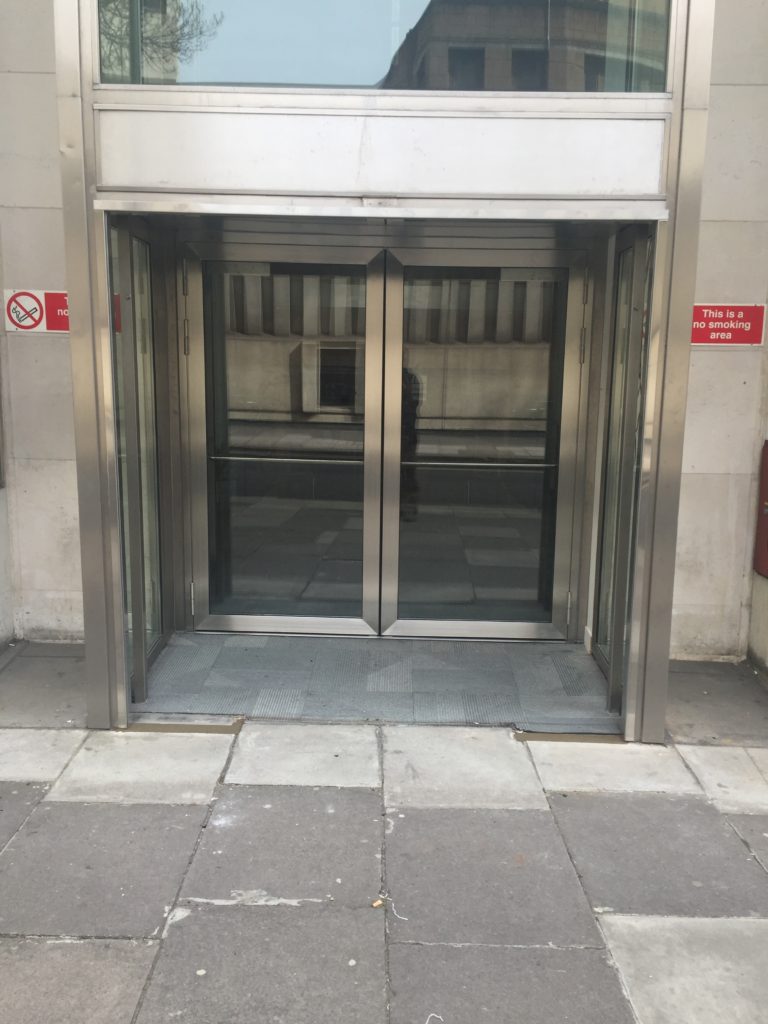

Fire resistant door manufactured by Pensher Skytech | Fire Doors
Royal Courts of Justice, London.

Fire Door Testing | Pensher Skytech

INTEGRITY AND INSULATION

It is possible to have fire resistance to integrity only or integrity and insulation, both of which can have different resistance times.

An ‘integrity’ only unit will remain as a physical barrier to the passage of fire for a specified period of time, but will not prevent heat transfer through the window.

An ‘integrity and insulating’ unit will prevent both the passage of fire and transfer of heat. It will not develop temperatures on its external surface, outside the compartment in which the fire is present which exceed 140° C.

APPLICATIONS

Pensher Skytech’s fire resistant door is suitable for areas that are at high-risk of fire. These include:

  • Petrochemical sites
  • Transport facilities
  • Commercial buildings
  • Factories
  • Waste management sites
  • Historical buildings
  • Hospitals
  • Housing complexes

Fire Resistant Door | Pensher Skytech

TECH SPEC

  • Fire integrity and insulation performance to EI120 tested to EN1634.
  • Fire integrity only to EI120, where insulation is not required.
  • Fully glazed doors, partly glazed, or solid panels.
  • Smoke protection by means of gaskets.
  • Radiated heat maintained to below a specified level of 15kWm², measured at 1 metre, on integrity only doors.
  • Integrity and insulation Class EI 30, EI 60, EI 90, and EI 120.
  • Integrity only Class E 30, E 60, EI 90, and EI 120.
  • A variety of configurations and dimensions.
  • Various glazing and panel performance options to go with the fire resistance including acoustic, blast, and bullet performance.
  • Interior and exterior use.
  • The fire doors are suitable for extremely high risk areas.
