ACOUSTIC DOORS

Acoustic doors are a necessity in environments where noise reduction and privacy is needed. Due to more stringent legislations, it has become a requirement to consider the effects of noise pollution in working and residential environments, as hearing can become affected by the repetition of relatively loud noises, and can affect a person’s physical and mental health. Pensher Skytech’s acoustic doors are rated to one of the highest standards and therefore can withstand significant volumes of noise.

acoustic-sound-resistant-doors-pensher-skytech-asset-protection

PERFORMANCE

Due to the high-performance criteria required from the acoustic doors, Pensher Skytech’s acoustic doors are of a robust and heavy duty steel design with a tighter tolerance to reduce very loud sound transmissions.

Our acoustic doors have been tested and can achieve a performance up to 50STC (50dB), which is one of the highest levels of acoustic performance.

TESTING

In order to determine the level of which an acoustic door can minimise sound, the UK industry standard ensures that doors are subjected to continuous sound waves with a spectrum of frequencies. Acoustic door sets can adopt different characteristics and therefore the highest rating door will not necessarily be the most suitable for the frequency of sound for which it is needed.

Measurements of acoustic performance:

dBs      Performance    Description

22        Minimal          Speech clearly audible

25        Average          Normal speech understood

35        Good               Loud speech audible but not intelligible

45        Very good       Loud speech just detectable

50        Excellent         Loud speech barely audible.

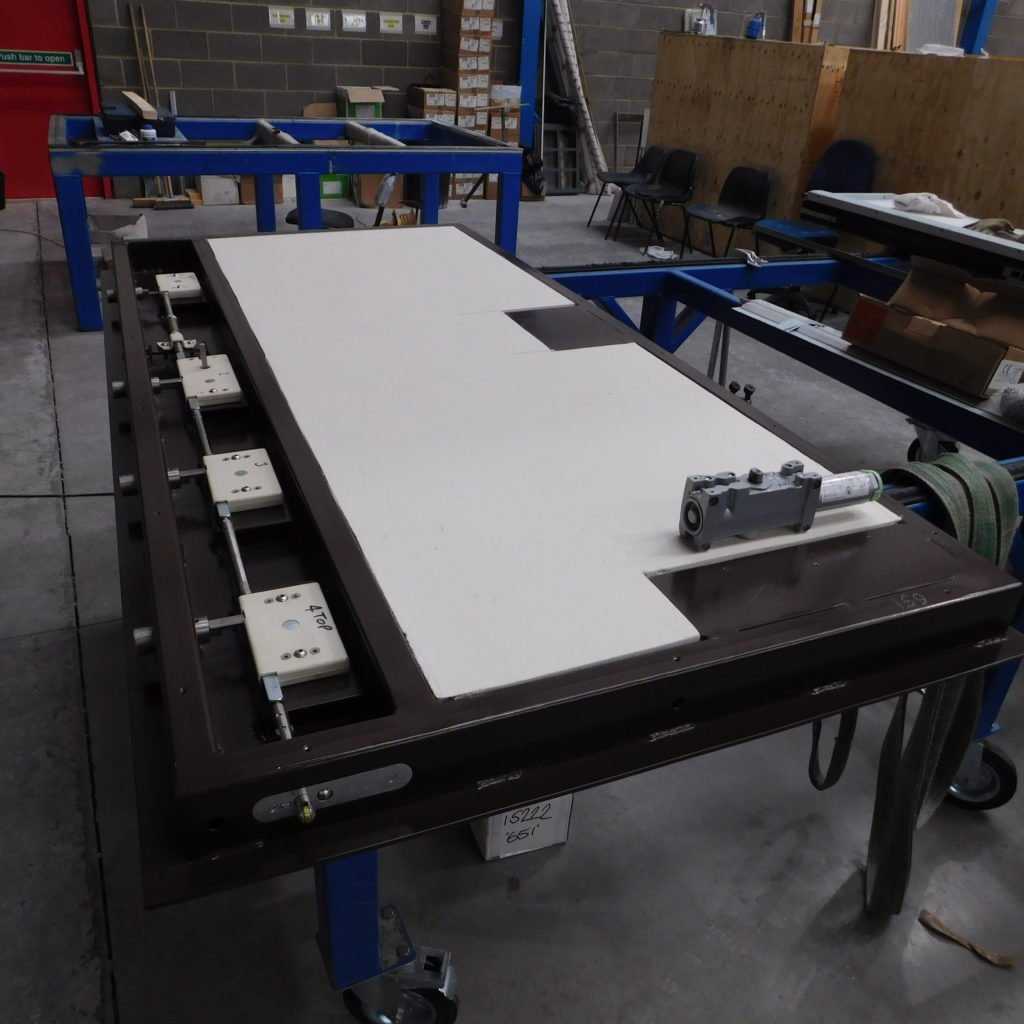

steel-acoustic-door-by-pensher-skytech-specialist-doors-and-glazing

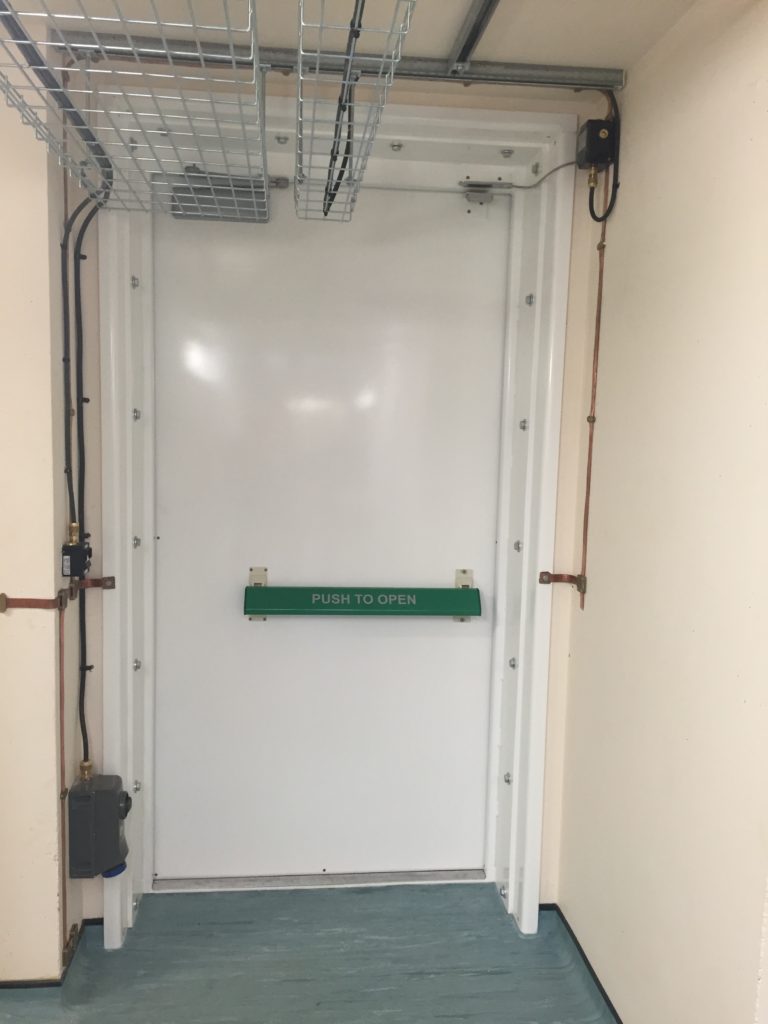

fire-resistant-door-by-pensher-skytech-asset-protection

ADAPTABILITY

Pensher Skytech’s acoustic doors can adopt other performance measures including blast resistance, security, fire-resistance and ballistic resistance. High specification doors such as these usually have an acoustic performance due to their robust and heavy duty design, however the additional acoustic sealant stops sound penetrating around the door edge.

Glass vision panels can also be incorporated into the door system depending on the requirements and specifications.



APPLICATIONS

Acoustic doors are ideal for any environment where noise pollution can be a problem to workers and residents. Areas that typically require high-specification acoustic doors are:

  • Airports
  • Military sites
  • Factories
  • Laboratories
  • Government buildings
  • Transport hubs

acoustic-doors-train-station-pensher-skytech-asset-protection

TECH SPEC

  • Steel frame construction with sound absorbing core materials.
  • Sound insulation glass is available and in conjunction with a steel framing system provide levels up to 50dB (50STC).
  • Acoustic windows are becoming a part of building legislation’s and regulations.
  • Have high levels of sound reduction for high performance environments.
  • Sound dead steel is a steel laminate composite which can reduce sound attenuation from loud machinery.
  • Sophisticated sealing gaskets on doors and windows prevent sound leakage.
  • Heavy duty door panels contribute to sound absorption.
  • Can adopt other performance requirements such as blast, ballistic, fire and security.
